HT-6510AM Shore Hardness Tester Durometer with 4-bit 10 mm Display 20-90HAM Test Range and RS232C Interface

Name: HT6510AM Shore Hardness Tester Durometer with 4bit 10 mm Display 2090HAM Test Range and RS232C Interface
Brand: Bestone
Price: 467 USD

Buy cheap HT-6510AM Shore Hardness Tester Durometer with 4-bit 10 mm Display 20-90HAM Test Range and RS232C Interface product

Brand Name : Bestone

Model Number : HT-6510AM

Certification : CE,ROHS

Place of Origin : CHINA

MOQ : 2

Price : US$467

Payment Terms : T/T,Western Union

Supply Ability : more then 100pcs per month

Delivery Time : 3-5 working days

Packaging Details : plastic carrying case and white paper box

Display : 4-bit 10 mm

Test range : 20-90HAM

Press needle size : RO.79mm

press needle stroke : 1.25mm

press needle end force : 324mN 764mN(33.04gf-77.91gf)

Measurement thickness (or 0 coil diameter) : H>1.5mm

Measurement accuracy : ≤ ±1 H

Resolution : 0.1H

Suitable for type 0 ring diameter : 5-80mm

AM Shore Hardness tester/Thin rubber hardness tester : 1, mainly used for measuring thin soft rubber, such as natural rubber, synthetic rubber, sample thickness of more than 1.5mm rubber;

Contact Now

Shore Hardness Tester HT-6510AM

Applications

AM Shore Hardness tester / Thin rubber hardness tester designed for:

Measuring thin soft rubber including natural rubber and synthetic rubber with sample thickness exceeding 1.5mm
Testing small O-rings, sealing rings, sealing gaskets, and other thin molding products or thin rubber raw materials
Suitable for thickness (O-ring diameter): H > 1.5mm; Appropriate ring diameter: 5mm-80mm

Key Features

Determines hardness of ordinary vulcanized rubber and analogues with sample thickness above 1.5mm
Measures Shore AM hardness range: 20HAM - 90HAM
Complies with standards: GB/T 531.1-2008, DIN 53505, ISO 868, ISO7619, ASTM D 2240, JIS K7215
Advanced Micro-computer LSI circuit and crystal time base for high accuracy measurement
Digital display eliminates reading errors and guesswork
RS232C interface for PC communication, recording, printing, and analysis with optional software
Automatic power off function for energy conservation
Optional operation stand ensures consistent measurement force for improved accuracy and repeatability

Technical Specifications

Display	4-bit 10 mm liquid crystal display
Display Range	0-100HAM
Test Range	20-90HAM
Press Needle Size	R0.79mm
Press Needle Stroke	1.25mm
Press Needle End Force	324mN - 764mN (33.04gf - 77.91gf)
Measurement Thickness	H > 1.5mm
Resolution	0.1H
Measurement Accuracy	≤ ±1 H
Suitable O-ring Diameter	5-80mm
Implementation Standard	GB/T 531.1-2008
Power Supply	2 * 1.5V AAA batteries
Operating Conditions	Temperature: 0-40°C, Humidity: <80%
Dimensions	176 * 65 * 27mm
Weight	Approximately 170g (excluding batteries)
PC Interface	RS232C interface

Additional Functions: Peak latch, average calculation, undervoltage indicator

Power Management

The instrument features two shutdown modes: manual and automatic. Press the multi-function key to manually shut down when "OFF" appears on display. Automatic shutdown occurs after 10 minutes of inactivity to conserve power.

Standard Accessories

Main unit, Carrying case, Operation Manual

Optional Accessories

RS232C interface cable and software

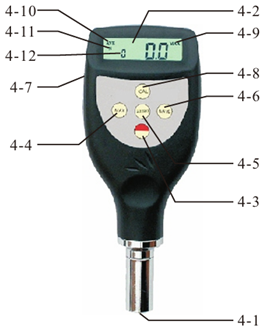

Front Panel Overview

HT-6510AM Shore Hardness Tester Durometer with 4-bit 10 mm Display 20-90HAM Test Range and RS232C Interface
