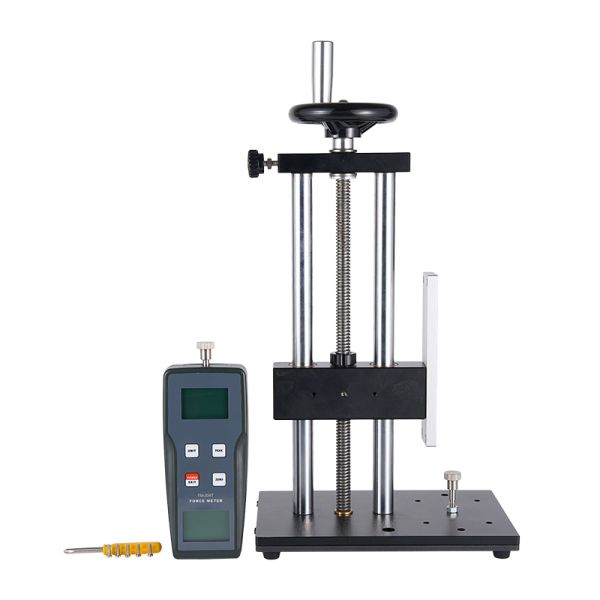

FM-204T Digital Hardness Tester with High Precision, Digital Display, and Peak Hold Function for Accurate Tablet Testing

Brand Name : Bestone

Model Number : FM-204T

Certification : CE

Place of Origin : CHINA

MOQ : 2

Price : negotiable

Payment Terms : T/T,Western Union,MoneyGram

Supply Ability : more than 100pcs per month

Delivery Time : 5-8 working days

Packaging Details : plastic box and paper carton

Material : plastic and metal

color : black and dark gray

Size : 211mmx80mmx36mm

Test scope : 0Kgf-20Kgf,0N-196N,0F-4426F

The resolution : 0.01Kgf,0.1N,0.0126F

Diameter of the test range : 15mm

Precision : ±0.5%FS (range) + 1 digital peak

Unit : kgf, gf, N, Lbf

Contact Now

Tablet Hardness Tester FM-204T
Applications
The FM-204T series tablet hardness tester is a digital display instrument designed and developed by our company. It features high precision, easy operation, and convenient portability. The recommended test range is 10%-100% of full scale, with the metrology department advising against using less than 1% of full scale. Before testing, ensure the instrument and test object are properly positioned, then press the ZERO key to clear any fixture weight.
Key Features
  • High precision and resolution for accurate measurements
  • Digital display eliminates reading differences
  • Four measurement units: N (Newton), kg (kilogram), lb (pounds), g (grams) with mutual conversion
  • Peak hold function maintains maximum reading until manually reset
  • Energy-saving design with 10-minute auto-shutdown and manual shutdown options
  • Dual power options: alkaline batteries or 5V DC power supply
Technical Specifications
Test Scope 0Kgf-20Kgf, 0N-196N, 0F-4426F
Resolution 0.01Kgf, 0.1N, 0.0126F
Test Range Diameter 15mm
Precision ±0.5% FS (range) + 1 digital peak
Units kgf, gf, N, Lbf
Measured Values Peak, instantaneous value
Display Four-digit LCD with dual screen orientation
Backlight Backlit display
Allowable Load 150% F.S. (audible alarm when exceeding 110% F.S.)
Power Supply 2x 5V batteries or 5V DC power supply
Working Temperature 0°C to 50°C
Working Humidity <80%
Weight 390g
Dimensions 211mm x 80mm x 36mm
Accessories
Standard Accessories Measurement bracket, 3x10 screws (4), user manual, cleaning brush, Phillips screwdriver
Optional Accessories Power adapter
