Gas Leak Detection Ultrasonic Transmitter ULD-586 40 KHz UT-40 with LED Display Panel

MOQ : 2

Price : negotiable

Brand Name : Bestone

Model Number : ULD-586 UT-40

Certification : CE

Place of Origin : CHINA

Payment Terms : T/T,Western Union

Supply Ability : more then 200 sets per month

Delivery Time : 5-8 working days

Packaging Details : plastic carrying case and white paper box

Detector : Ultrasonic Leakage Detector

Leakage Sensitivity Indicator : LED Display Panel & Audible Tone.

Frequency Response : 20 kHz to 100 kHz

Power Supply : 4X1.5 AAA(Um-4) Battery

Power Consumption : Approx. DC 25 Ma

Operating Temperature : 0 to 50 °c ( 32 to 122 °f ).

Size : Hwd 236 X 63 X 26 mm (9.3 X 2.5 X 1.0 Inch)

Transport Package : Carrying Case

Specification : 20cmx13cmx7cm, 0.5kgs, plastic

Ultrasonic Transmitter : Model UT-40

Frequency : 40KHZ

Oscillator Circuit : 640 KHz crystal time base & divided by 16.

Contact Now

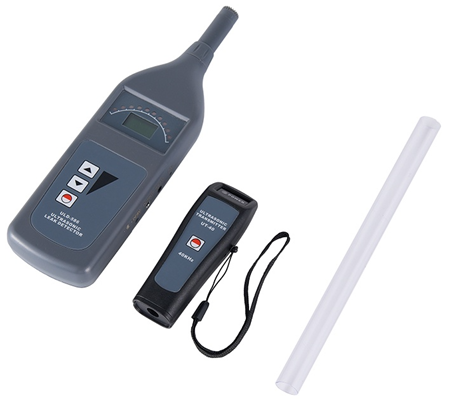

Ultrasonic Leakage Detector ULD-586 with Ultrasonic Transmitter UT-40
Applications
This advanced detection system is designed for comprehensive leak detection across multiple industrial applications:
  • Refrigeration and air conditioning system leaks
  • Heating system leaks
  • Internal leaks in steam transfers
  • Compressed air leaks
  • Tire and tube leaks
  • Engine seals inspection
  • Electrical arcing detection
  • Bearing problem identification
  • Brake system analysis

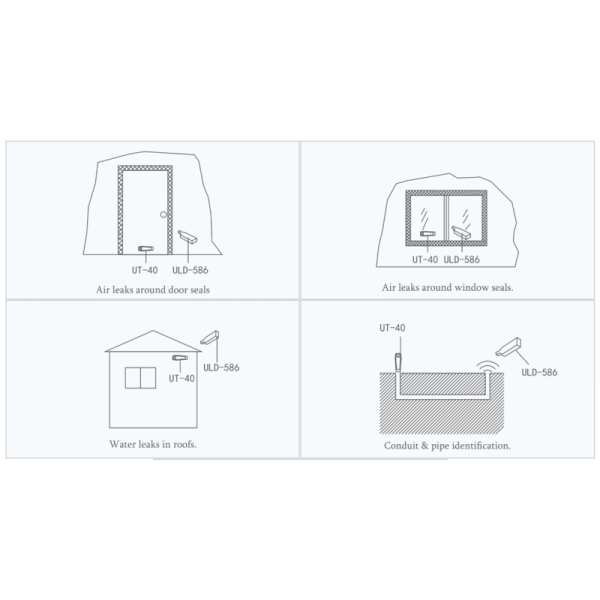

With the Ultrasonic Transmitter UT-40, additional applications include:
  • Air leaks around door and window gaskets and seals
  • Water leaks in roofs
  • Conduit and pipe identification
  • Door and trunk seals inspection

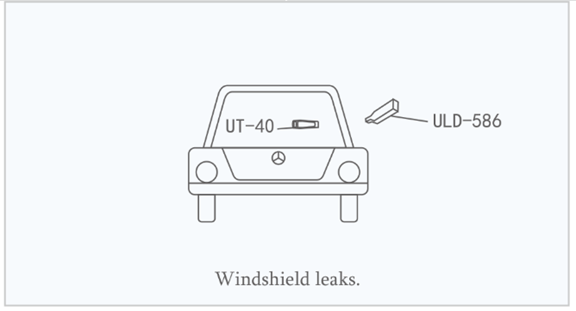

  • Windshield leak detection
Gas Leak Detection Ultrasonic Transmitter ULD-586 40 KHz UT-40 with LED Display Panel Gas Leak Detection Ultrasonic Transmitter ULD-586 40 KHz UT-40 with LED Display Panel
Theory of Ultrasonic Gas Leakage Detection
The human ear can detect sound frequencies up to 18 KHz. Frequencies above 20 KHz are categorized as ultrasonic sound, which is inaudible to humans. Ultrasonic sound is highly directional, allowing for precise identification of leak sources.
According to physics principles, gas naturally flows from higher pressure regions to lower pressure areas. When pressure differences occur through small openings, the resulting turbulence generates ultrasonic sound. In non-pressurized states, the ultrasonic transmitter can detect waves leaking from small holes. This ultrasonic gas leakage detector is engineered based on these fundamental physical principles.
Key Features
This Ultrasonic Gas Leakage Detector is specifically designed to locate the source of ultrasonic emissions generated by gas or air leaks. The leakage level is displayed on an LED display panel and converted to audible sound through either the internal buzzer or an optional external earphone.
Technical Specifications
ULD-586 Specifications:
Leakage Sensitivity Indicator LED display panel & audible tone. (LED display provides relative measurement only. Audible tone represents the frequency of received ultrasonic sound divided by 32.)
Frequency Response 20 KHz to 100 KHz
Power Supply 4x1.5 AAA (UM-4) batteries
Power Consumption Approximately DC 25 mA
Operating Temperature 0 to 50 °C (32 to 122 °F)
Operating Humidity Maximum 80% RH
Weight Approximately 140 g / 0.31 lb (including battery)
Dimensions 236 x 63 x 26 mm (9.3 x 2.5 x 1.0 inch)

Standard accessories

 host /PVC pipe/ instruction manual

Optional accessories

 UT-40
UT-40 Specifications:
Frequency 40 KHz
Oscillator Circuit 640 KHz crystal time base divided by 16
Operating Temperature 0 to 50 °C (32 to 122 °F)
Operating Humidity Maximum 80% RH
Power Supply 2x1.5 AAA (UM-4) batteries
Weight 50 g / 0.11 lb (including battery)
Dimensions 100 x 35 x 23 mm (3.9 x 1.4 x 0.9 inch)
Gas Leak Detection Ultrasonic Transmitter ULD-586 40 KHz UT-40 with LED Display Panel Gas Leak Detection Ultrasonic Transmitter ULD-586 40 KHz UT-40 with LED Display Panel
