BTT-2880R8 Infrared Belt Tension Tester Automatic Power Off for Narrow Spaces

Name: BTT2880R8 Infrared Belt Tension Tester Automatic Power Off for Narrow Spaces
Brand: Bestone
Price: 1 USD

Buy cheap BTT-2880R8 Infrared Belt Tension Tester Automatic Power Off for Narrow Spaces product

MOQ : 2

Price : negotiable

Brand Name : Bestone

Model Number : BTT-2880R8

Certification : CE

Place of Origin : CHINA

Payment Terms : T/T,Western Union,MoneyGram

Supply Ability : more than 100pcs per month

Delivery Time : 5-8 working days

Packaging Details : plastic carrying case and white paper box

Display : Digital

Customized : Customized

Display Error : ±1Hz

Measurement Range : 10Hz~800Hz

Operating Temperature Range : +10°c~50°c

Transportation Temperature Range : -5°c~70°c

Optical Path Measurement Distance : 3mm~20mm

Contact Now

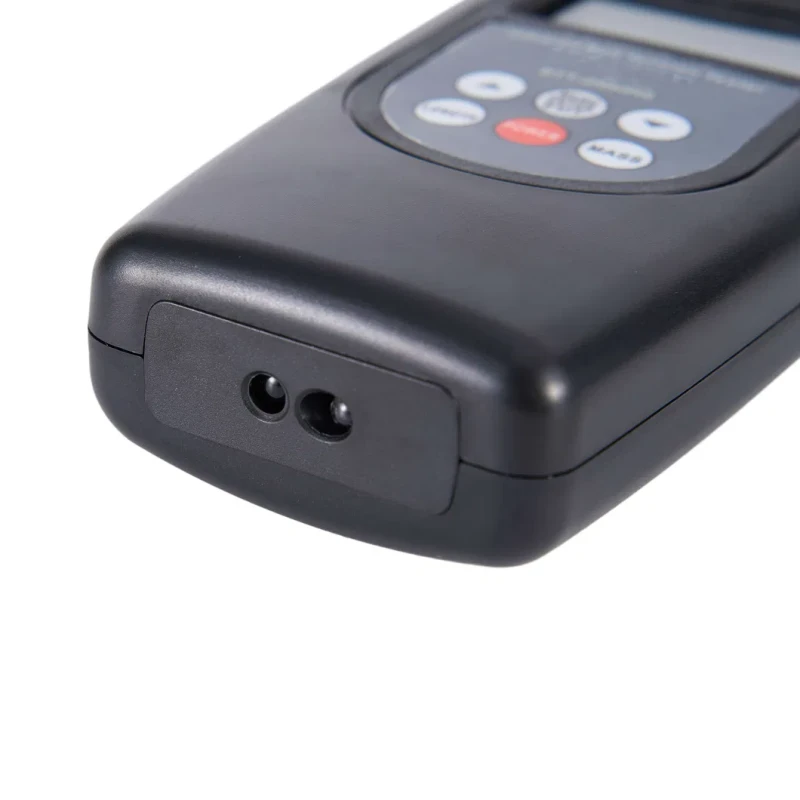

Infrared Belt Tension Tester BTT-2880R8

Product Features

Laser sensor technology for direct measurement, more convenient than mechanical sensors
Compact split sensor design ideal for measuring in narrow spaces
Dual sensor options: integrated sensor and split sensor
Display readings in metric or imperial units
Automatic power off function for energy efficiency

Measurement Principle

This tension tester measures the natural vibration frequency of belts through laser emission and reception technology. The system calculates belt tension values by combining input belt mass and free belt length parameters.

Technical Specifications

Measurement Range	10Hz~800Hz
Input Range	Free Belt Length Max 99.99m \| Belt Mass Max 9.999kg/m
Digital Sampling Error	<1%
Display Error	±1Hz
Total Error	<5%
Operating Temperature Range	+10°C~50°C
Transportation Temperature Range	-5°C~70°C
Units of Measurement	Metric: m, kg/m, N \| Imperial: Inch, lbs/foot, lbf
Optical Path Measurement Distance	3mm~20mm
Depth of Split Sensor	Approximately 66mm
Power Supply	4x1.5V AAA (UM-4) Battery
Dimensions	Main Unit: 178mm x 72mm x 34mm \| Sensor: 124mm x 21mm x 12mm
Weight	180g (Not Including Battery)

Standard Accessories

Main Unit
Split Sensor
Carrying Case (B04)
Operation Manual
